Cellulosic Fibers - A World of Opportunity

Cellulosic Fibers - A World of Opportunity

Worldwide demand for fibers has strongly mirrored GDP for many decades. Having closely monitored markets since 1975, Tecnon OrbiChem predicts a 135-million-ton annual requirement by 2030. Demand is unlikely to encounter a departure from GDP growth, however methods for meeting it may be subject to change. The relative contributions of the different fiber types may flux, though polyester will continue to dominate.

With production having tripled since 2000, fibers derived from natural cellulose – a non-petrochemical source – are gaining interest. In the textile industry, cellulose is the fastest-growing fiber group. Analysts at the Nova Institut, the German research and consultancy enterprise, also identify cellulose fibers as the bioeconomy’s largest investment sector.

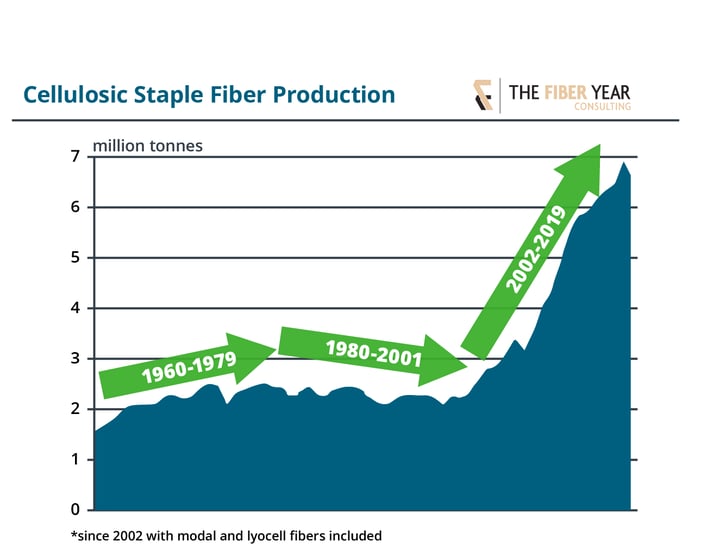

cellulosic-fibres-01Source: The Fiber Year

Tecnon OrbiChem’s chemical industry business information platform OC360 indicates annual demand is currently six million tons – mostly in staple, with filament in decline.

Presenting at the 8th Beijing International Man-made Fiber Conference in 2000, Tecnon OrbiChem founder Charles Fryer, alongside former colleague Tim Johnson, spoke of 'a great future' for a fiber that had a strongly hydrophilic nature. The reason was that the production of cotton was unlikely to grow since it is a crop with high demands on prime agricultural land.

There was a need for a fiber with as good a moisture-absorbing character as cotton. "Viscose is the major contender," he advised.

We thought this hydrophilic fiber could be either polyester microfiber or viscose, but microfiber was quite new, and we were not sure if it would meet the need we saw developing.

Charles Fryer, Senior Advisor, Tecnon OrbiChem

In recollection, 22 years on, Fryer says, "Tim and I were not sure what the new hydrophilic fiber might be, although we saw the market opportunity. We thought it could be either polyester microfiber or viscose, but microfiber was quite new, and we were not sure if it would meet the need we saw developing."

Screenshot 2022-02-01 at 21.34.41

"We should have thrown in our lot with viscose. Polyester microfiber has had a certain success in the following 20 years. However, we now see it was viscose that had the hydrophilic character to meet the market need for a cotton replacement," Fryer adds.

Hydrophilic material is water-loving, hydro – from the Greek terms for water and philos means love. The surface allows water droplets to easily spread, thereby wetting a larger area than hydrophobic fibers. Non-woven hydrophilic materials make ideal disposable wipes for both personal care and cleaning product applications. Softness, water absorption, and degradability are the properties these products need. But increasingly viscose or lyocell fibers are being used, usually in blends, in clothing.

Cellulose Fibers Surge

Cellulose fibers – or cellulosic fibers – include a variety of sub-types of fiber. Often, they are better known as rayon (particularly in the US), or by their sub-type name, viscose, lyocell, or modal. Their key feature is that they are manufactured from natural cellulose pulp or using a proportion of recycled cellulose pulp.

Non-natural fibers are often sub-classified as synthetic if they are petroleum-derived. If they are obtained by working up natural materials, they are classed as artificial. Both together are termed 'man-made fibers'. Cellulosic fibers are generated by treating wood pulp with chemicals that convert it to a liquid form which can be spun into fiber, used in non-wovens or extruded as cellophane film.

Cotton on to Cellulose

The properties of cellulose fibers are closer to cotton than synthetic fibers to the touch. Aside from the quality feel, brand owners are attracted by cellulosic fibers’ green credentials. Driven to reduce reliance on petrochemical feedstocks to reduce CO2 emissions, plant-based starting materials are gaining increasing traction.

Viscose fibers’ softness also makes them suitable for use in garments worn next to the skin, such as underwear. For outerwear clothing where softness is at a premium – such as for cardigans and jerseys – it is a popular choice too. Viscose staple sportswear is also a growing trend. But 100% viscose would wear out rapidly, so it is usually blended with cotton or synthetic fiber in clothing.

Image shows a line chart including wool, cotton, cellulose fibres (and more) incrementally increasing at around a 45% angle between 1980 and 2030

Source: Tecnon OrbiChem

There are two key processes in operation worldwide. There are two key processes in operation worldwide. The viscose process produces almost 90% of the world’s viscose filament and staple fiber. The lyocell process is used for much of the remaining percentage. There is also cellulose acetate staple, in a declining market for cigarette tow, but with potential to expand into other applications.

Greening, Not Whitewashing

The cellulose fiber industry freely admits more could, and should, be done to make the chemical processes for cellulose fibers more environmentally friendly.

The viscose process uses carbon disulphide (CS2) as a solvent and although this is recovered within the process, there is the challenge of handling this unpleasant material as well as discharges to the atmosphere of wastes including sulphur and sulphuric acid. With more widespread use of new technologies, standards have improved in recent years. The lyocell process, in contrast, uses N-methylmorpholine N-oxide as the solvent. With its reduced waste volumes, and almost full recovery of all chemicals used in the process, it is seen as more environmentally friendly. Another development, the cellulose carbamate process is currently seen as the most viable option to substitute, or retrofit, existing viscose technology to decrease CS2 input.

Recycling Key to Cellulose Benefit

Recycling post-consumer garments back to cellulose pulp has been mooted as a potential way to increase the sustainability of the cellulose fiber industry. The process involves the extraction of cellulose fibers from cotton or viscose scraps, garments, or mixed textiles containing cellulose fibers. This is followed by a process for blending the resulting pulp with a virgin feed generated from wood.

Although there is a strong push towards the use of sustainable materials, it is inconceivable that cellulose fibers will come anywhere close to substituting synthetic fibers in the foreseeable future. Polyester/polyamide demand will continue to grow in tandem with the global population and GDP increases. As with green chemicals and polymers, cellulose fibers are a tool for reducing CO2 output and achieving global warming targets. Cellulose fibers, however, lack the hard-wearing properties of polyester and polyamide.

Besides textile recycling, brand owners and consumers must be willing to pay higher prices for sustainable materials.

Cellulosics are growing faster than mature fibers like acrylic or polyamide because of their softness, water absorption character, and cotton-like qualities.

Tecnon OrbiChem's business information platform OC360 covers international fibers markets whilst our Biomaterials ChemFocus provides insight into developments in the bio-based chemical sector.
